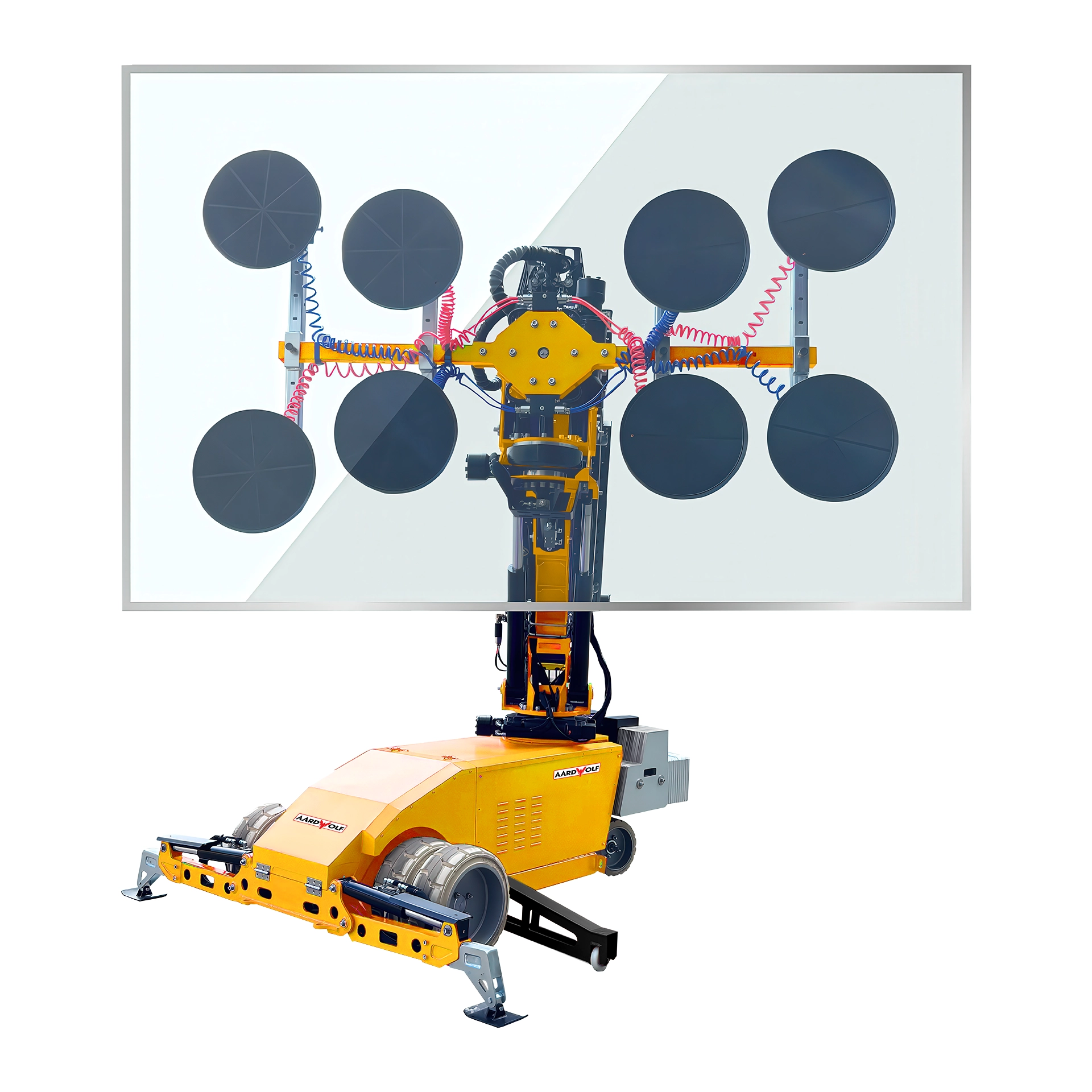

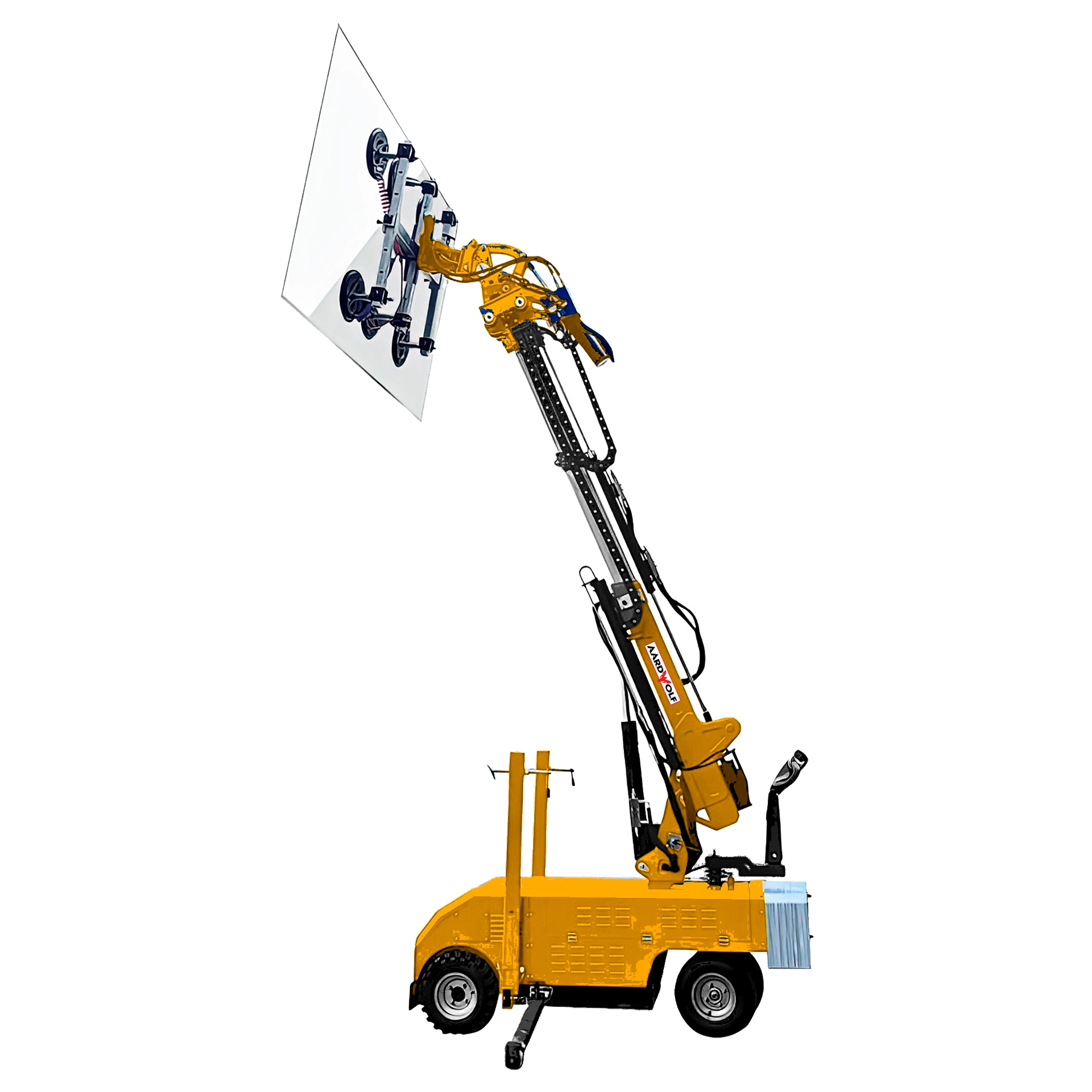

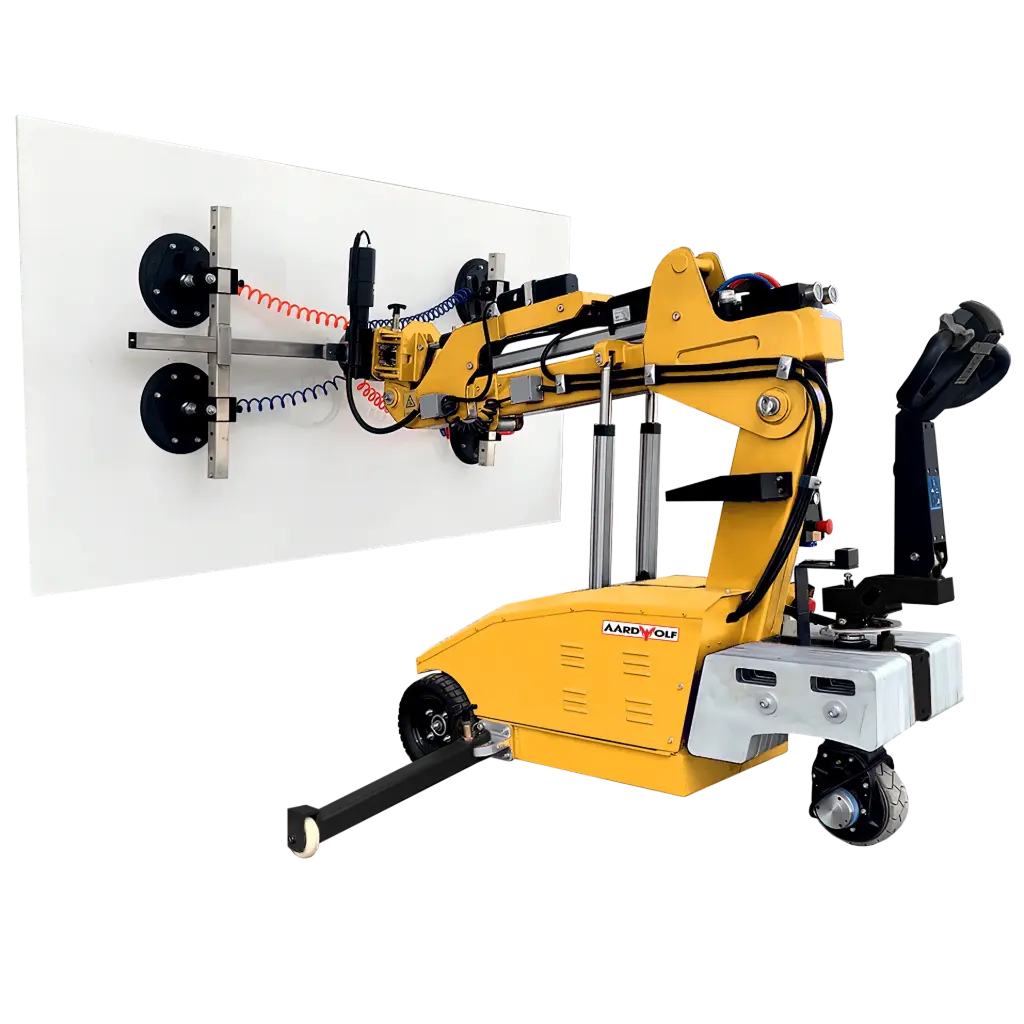

Aardwolf Glazing Robots - AGR-400
Overview
The AGR-400 is designed for medium and small-scale projects, especially where workspace is limited. With a maximum lifting capacity of 380–400 kg, the AGR-400 supports essential movements such as lifting, extending, tilting, and rotating the suction frame. It reduces manual effort and improves installation efficiency. Compact in size, the AGR-400 is easy to maneuver on site.
Features
Lifting capacity up to 380–400 kg.
4 vacuum suction cups Ø300 mm.
Manual rotation 360° and side tilt 90°.
Boom extension 500 mm.
Pressure display with gauge and digital readout.
Travel system with climbing capability.
Rechargeable battery for extended operation.
Spezifikationen
| AGR-400 | Wert |
|---|---|
| Maximale Last | 380 kg |
| Maximale Hubhöhe | 3000 mm |
| Fahrgeschwindigkeit | 0–4 km/h |
| Nennleistung | 1.2 kW |
| Antriebsmodus | 24V, rear drive |
| Steigfähigkeit | 15% |
| Saugnäpfe | 4 × Ø300 mm |
| Rahmenrotation | 360° (manual) |
| Seitliche Neigung des Rahmens | 90° each side (manual) |
| Vertikale Neigung des Rahmens | 180° |
| Seitliche Verschiebung | 100 mm |
| Auslegerverlängerung | 500 mm |
| Batterie | 2 × DC12V-100Ah |
| Betriebszeit | 4–8 hours |
