Elevadores de vacío eléctricos

Elevadores de vacío eléctricos - AEVLP4-500

General

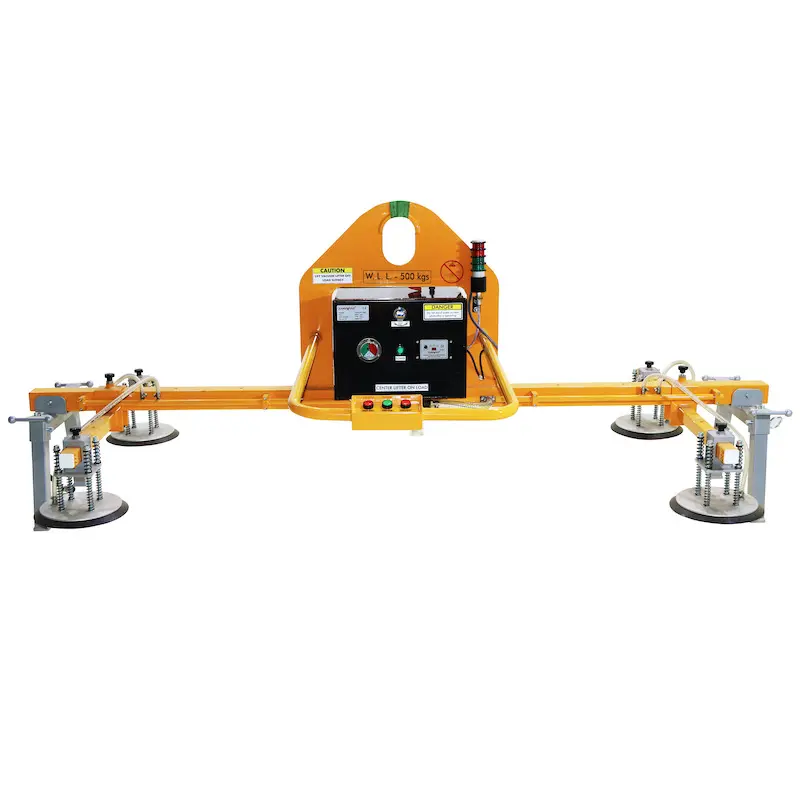

An electric pump motor drives the Aardwolf Electric Vacuum Lifter model AEVLP4-500 and is suitable for handling large metal sheets. It features the ability to adjust the main beam and vacuum pads for a variety of sheet sizes. The lifter's working load limit is up to 500kg with material sizes up to 3000x1500mm.

Features

Audio-visual safety system.
When pressure is lost, the pressure switch control system automatically starts the vacuum pump.

Specifications

AEVLP4-500	Métrica
Número de almohadillas	4
Diámetro de la almohadilla	300 milímetros
Límite de carga de trabajo	500 kilos
Peso neto	192 kilogramos
Peso bruto	289 kilogramos
Dimensiones del embalaje	Largo 2880 x Ancho 570 x Alto 1220 mm

Información sobre la batería del sistema de alarma

Fuente de alimentación	Batería de LiPo de 3,7 V
Capacidad de la batería	2000 mAh x 1
Adaptador	CC 5 V-1 A
Tiempo de espera	720 horas
Ciclo de carga	1000 veces
Tiempo de carga	2 horas
Tiempo de trabajo continuo	7 horas
garantía de 6 meses	-

Información del motor

Suministro de entrada	CA 380-3 Fase 50/60 Hz
Caudal de vacío	4,1/4,7 m3/hora
