Accueil grues d'atelier palans Hoist PA500

Hoist PA500

Hoist - PA500

General

The Hitachi 1SN1ST electric chain hoist and the PA500 wire rope hoist are designed to meet a wide range of lifting needs in workshops, warehouses, and construction sites.

Both models provide dependable performance, with the PA500 offering a compact, economical solution for light-duty lifting, while the Hitachi hoist delivers premium, dual-speed operation and long-lasting durability for demanding industrial applications.

Features

HITACHI1SN1ST

Dual-speed control for both fast and precise lifting.

High-strength load chain, rotatable hook with safety latch.

24V pendant control with emergency stop for operator safety.

Upper & lower limit switches protect against over-travel.

Reverse phase relay prevents wiring errors.

Certified to CE & UKCA standards, IP54 protection class.

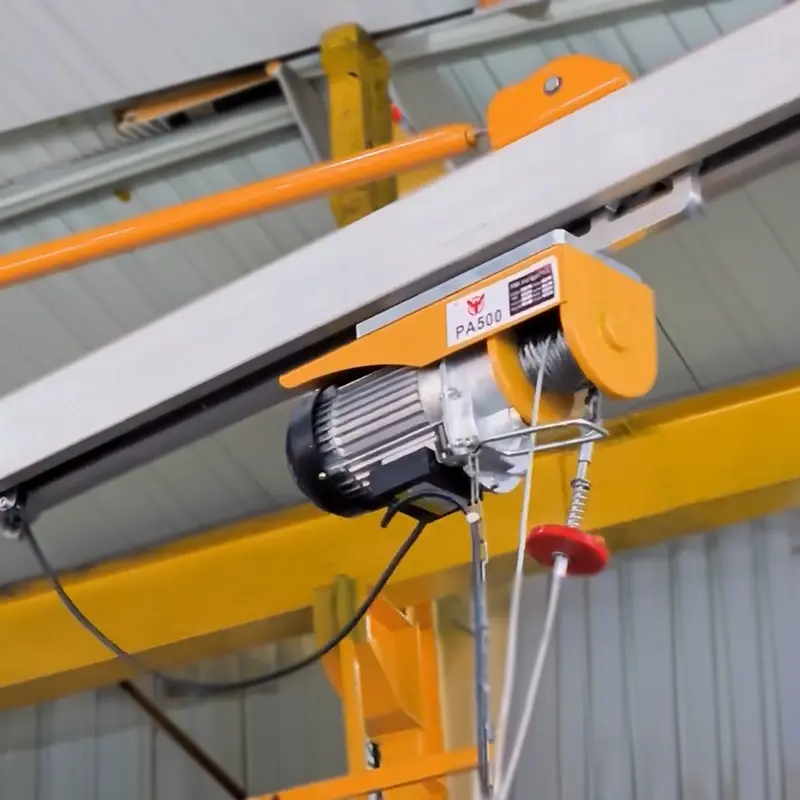

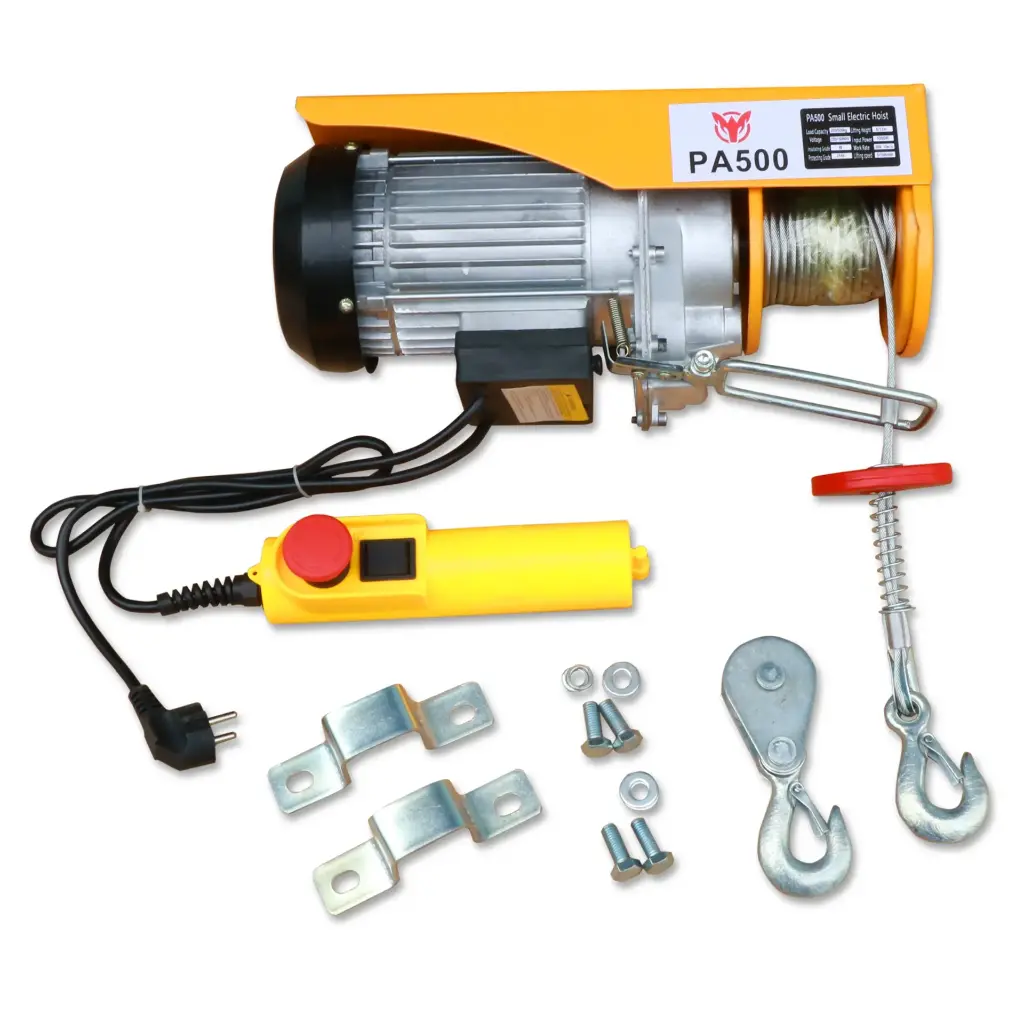

PA500

Dual-hook system for flexible lifting capacities (250 / 500 kg).

Operates on 220V single-phase, suitable for workshops and household power supply.

Emergency stop switch for safe operation.

Compact and lightweight design, easy to install and transport.

Duty cycle S3 – 25%, suitable for intermittent use.

Spécifications

PA500	Metric
Load Capacity (Single/Double)	250 / 500 kg
Lifting Height (Single/Double)	12 m / 6 m
Lifting Speed (Single/Double)	10 m/min – 5 m/min
Cable Diameter	4.8 mm
Cable Length (Single/Double)	12 m / 6 m
Voltage	220V – Single phase, 50Hz
Power	1000W
Weight	16.5 kg
Duty cycle	S3 – 25% (max 2.5 min per 10 min cycle)
