Pneumatische Ankermaschine

General

Anchor Machines manufactured by Aardwolf Industries LLC featuring two models, pneumatic or electric grinders with a vacuum-powered base.  Used to cut T-slots in the back of vanity tops for the attachment of anchor bolts used in under-counter sinks or architectural facing systems.  Two separate vacuum zones on the base can be turned on or off, enabling the machine to be used near edges.

Features

• Industrial quick-couplers for both air and water.

• Combination port that allows vacuum to be applied with compressed air via the built-in venturi vacuum generator.

• The grinders accept any T diamond bit with a 6mm shank.

• A water hose with a ball valve and quick-coupler can be quickly detached and used to spray the work area.

• Machine cuts in both push and pull directions.

• Alignment indicators on the machine base.

• Machined, anodised aluminium components.

• Molded rubber vacuum base seal.

Note: The Portable Water Supply Tank is sold upon request.

Specifications

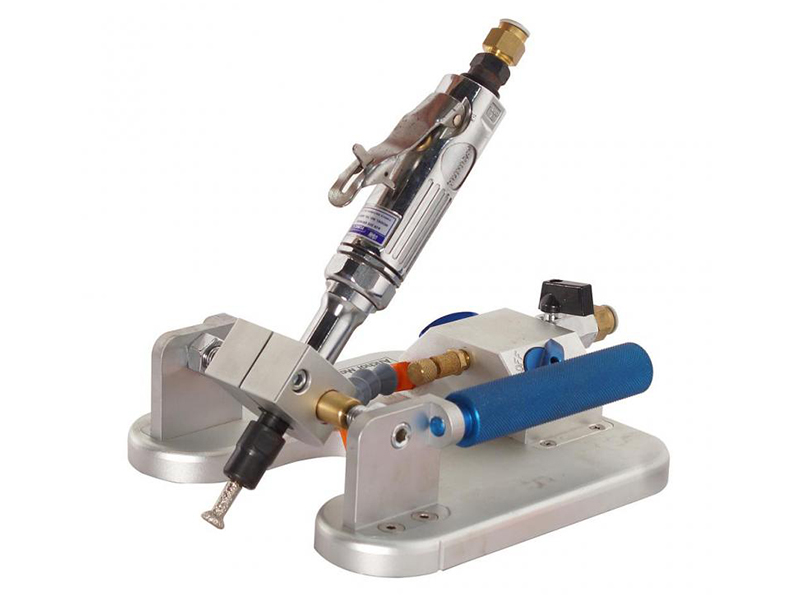

Pneumatic Anchor Machine APAM

	Metric	Imperial
Net weight	3 kg	7 lb
Collet diameter	6 mm	1/4"
No load speed 25,000 RPM
Water connection hose thread 1/4" PT
Air connection 1/4" industrial series coupler plug
Vacuum base -80 kPa vacuum

Electric Anchor Machine EAM

	Metric	Imperial
Net weight	4 kg	9 lb
Collet diameter	6 mm	1/4"
No load speed 30,000 RPM
Aardwolf Powerful 750W Motor
Water connection hose thread 1/4" PT
Air connection 1/4" industrial series coupler plug
Vacuum base -80 kPa vacuum
